HKJ Medium power plate laser cutting
Tube sheet laser cutting
Product advantages High quality plate cutting, high speed, high precision, intersecting line and precision cutting of various special-shaped complex graphics that are difficult to be realized by conventional methods; One time forming, savin
Product advantages
High quality plate cutting, high speed, high precision, intersecting line and precision cutting of various special-shaped complex graphics that are difficult to be realized by conventional methods; One time forming, saving cost and improving efficiency.
Fiber laser

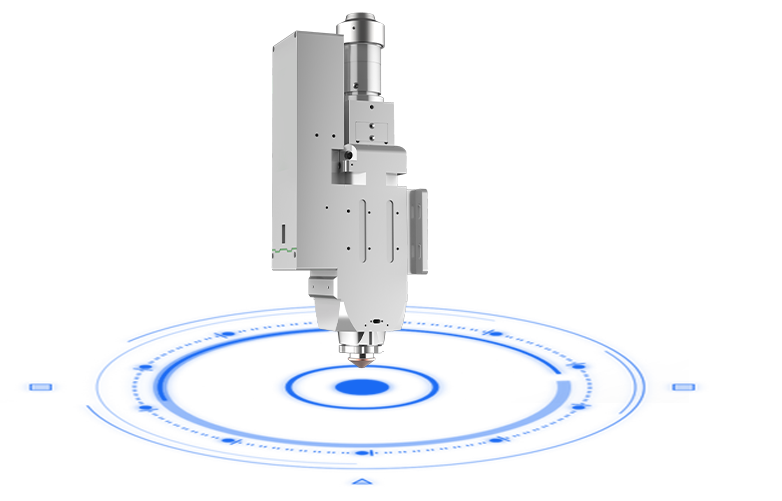

Auto focusing intelligent laser head
Equipped with auto focusing laser head, when processing plates of different materials and thicknesses, the machine can automatically and quickly adjust the focus to the most appropriate position, so as to achieve twice the result with half the effort.
Bachu software system
-
Software systemBochu system, the control software system of optical fiber laser cutting machine. Becchu cypcut laser cutting control software is specially used for the control and operation of laser cutting machine. It is very convenient and practical. Cooperating with laser cutting machine can achieve the best cutting effect. -
Functional featuresSupport AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the international standard G code generated by master cam, typer3, Wentai and other software. -
Bochu CNC systemIt supports sectional perforation, progressive perforation, pre perforation and grouping pre perforation, and supports setting separate laser power, frequency, laser form, gas type, air pressure, peak current, delay, follow height, etc. for perforation process and cutting process.
-
01Humanized handle control technologyThe technology upgrade operation is simpler and the work efficiency is higher -
02Imported servo drive CNC driveExcellent performance, fast response, longer life cycle -
03Grinding grade rack has higher accuracyGood performance, durable, high rigidity and longer service life -
04Energy saving and power saving of industrial water coolerProfessional water cooler fully automatic operation, high efficiency and low noise
Cut sample
Distribution map of domestic sales outlets
-
四川四川
四川地区销售服务网点：成都市柏路499号22栋11-12号联系人：张经理 -
河南河南
河南地区销售服务网点：河南省新乡市宏力大道南段联系人：夏经理 -
山东山东
山东地区销售服务网点：山东淄博市临淄区朱台镇大柳村联系人：龙经理 -
深圳深圳
深圳市龙岗区龙翔大道9002号志联佳大厦1902室联系人：林经理 -
江西江西
江西地区销售服务网点：南昌市小蓝经济开发区小蓝大道635号联系人：梁经理 -
福建福建
福建地区销售服务网点：泉州环城西路北5区789号联系人：杜经理 -
浙江浙江
浙江地区营销服务中心：宁波高新区聚贤路587弄15号A3#11-1总部工厂地址：浙江宁波市慈溪灵绪二路1号 -
上海上海
上海地区销售服务网点：上海市嘉定区南翔镇佳通路31号联系人：孙经理 -
天津天津
天津地区销售服务网点：石家庄建设大街147号丰泽园联系人：杨经理 -
河北河北
河北地区销售服务网点：石家庄建设大街147号丰泽园联系人：杨经理 -
陕西陕西
陕西地区销售服务网点：西安国际港务区华南城五金机电E区E2区16街8栋5号联系人：吴经理 -
甘肃甘肃
甘肃地区销售服务网点：兰州市城关区科技街143号202室联系人：李经理 -
内蒙古内蒙古
内蒙古地区销售服务网点：蒙古呼和浩特市回民区新华桥北街星河御园C座28-7联系人：王经理
Technical parameter
| Model | HK J-3015A | HK J-4020A | HK J-6020A | HK J-6025A | HK J-8025A |
| Processing format(LXW) | 3000mmx1500mm | 4000mmX2000mm | 6000mmX2000mm | 6000mmX2500mm | 8000mmX2500mm |
| X Shaft stroke | 1530mm | 2030mm | 2030mm | 2530mm | 2530mm |
| Y Shaft stroke | 3030mm | 4030mm | 6030mm | 6030mm | 8030mm |
| z Shaft stroke | 120mm | 120mm | 120mm | 120mm | 120mm |
|
X、Y Positioning accuracy |
±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| X、Y Repeat positioning accuracy | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m | ±0.02mm/m |
| X/Y Max. positioning speed | 120m/min | 120m/min | 120m/min | 120m/min | 140m/min |
| X/Y Large acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Max. load of workbench | 900KG | 1500KG | 2000KG | 2400KG | 6000KG |
| Equipment power demand | 380VAC±10%/50HZ | 380VAC±10%/50HZ | 380VAC 110%/5DHZ | 380VAC±10%/50HZ | 380VAC±10%/50HZ |
